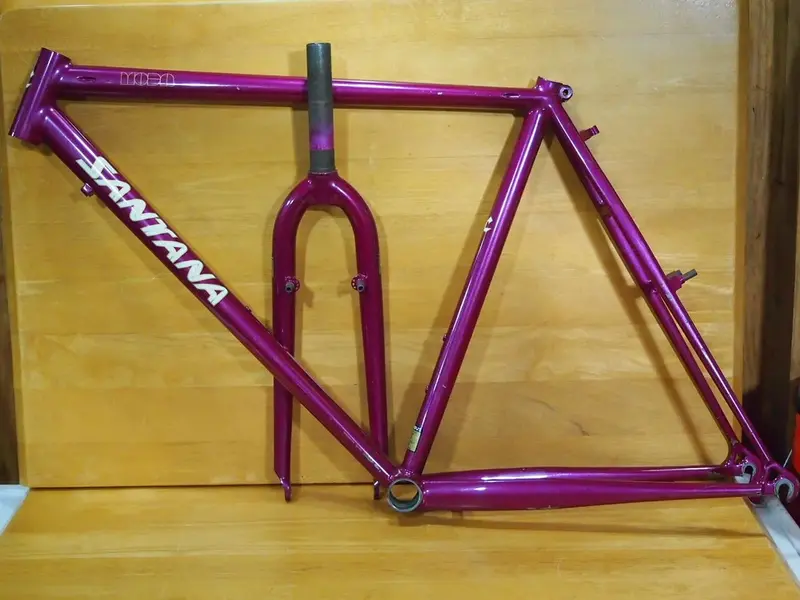

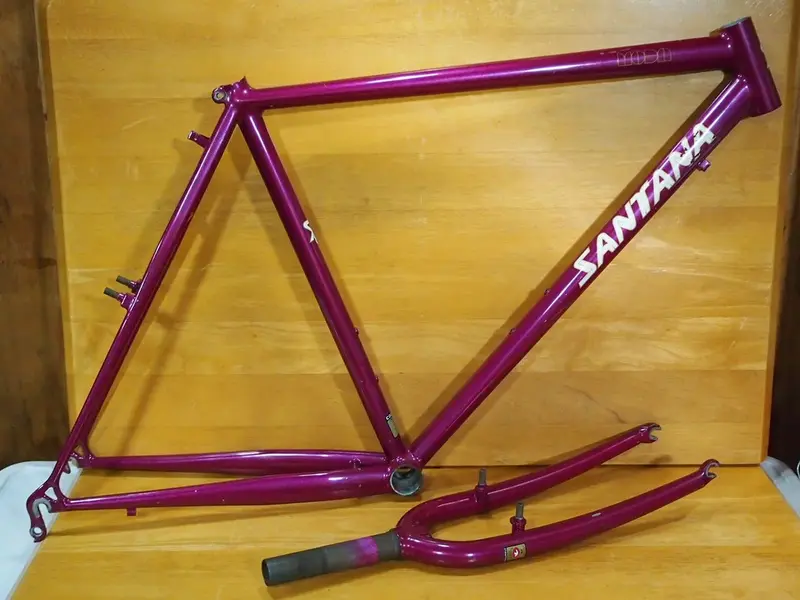

Sold santana-moda columbus-max fillet-brazed frame & fork

[bikehoney]

Good shape (cosmetically, structurally, and functionally).
No dents. All threads are clean and sound.

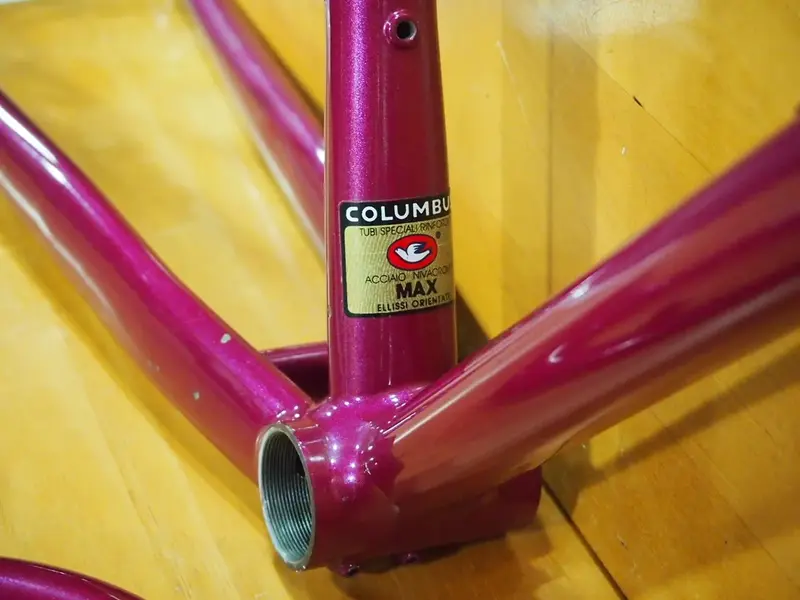

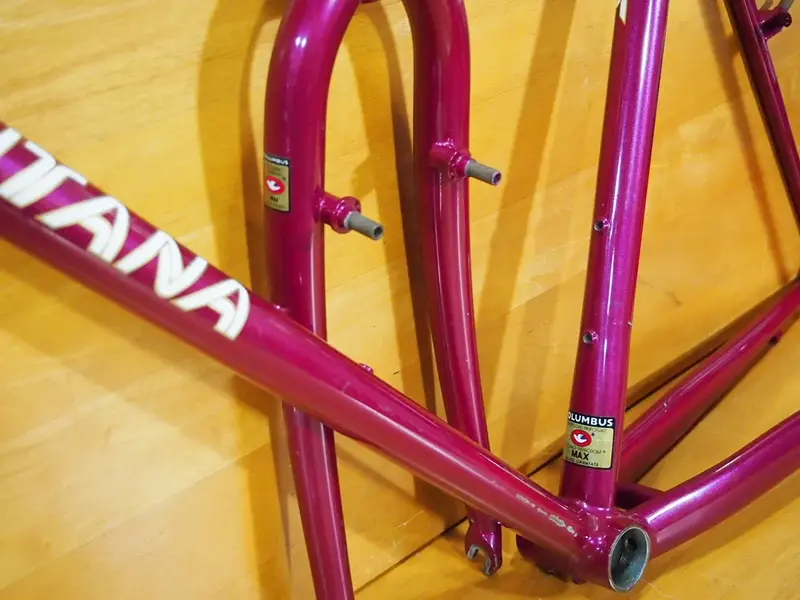

This frameset is from the early 1990's and is made out of the very thin MAX steel tubing, not the thicker Max-OR (off-road) tubes. Compatible with 26” size tires/wheels and rim-type brakes (cantilever/vbrake/magura).

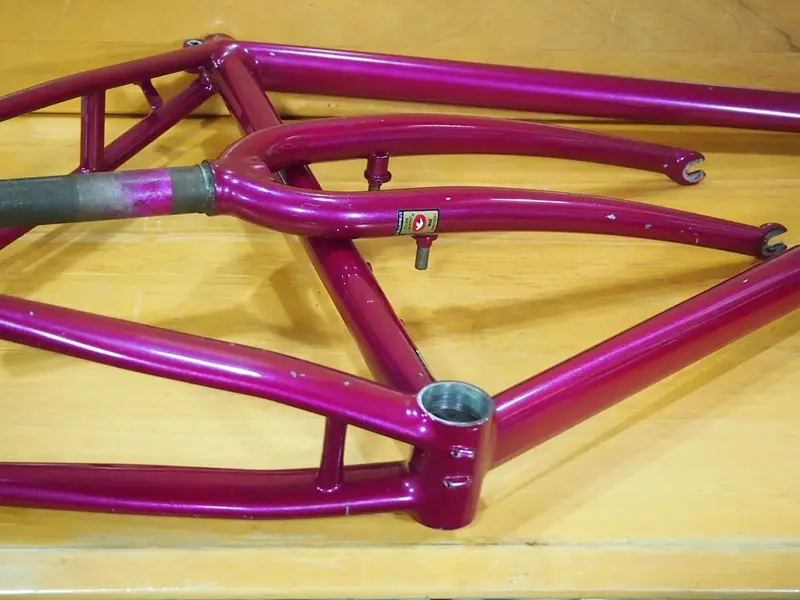

Fork specs:
-Top of crown (race) to axle: 380mm
-Dropout spacing (hub width): 100mm
-Steertube length: 145mm (threaded)
-Steertube diameter: 1-1/8" (28.6mm)
-Weight (actual): 860 grams

Frame specs:
-Top-tube (center of head-tube to center of seat-tube): 22.75"
-Seat-tube (center of bottom-bracket to top of seat-tub): 19.75"

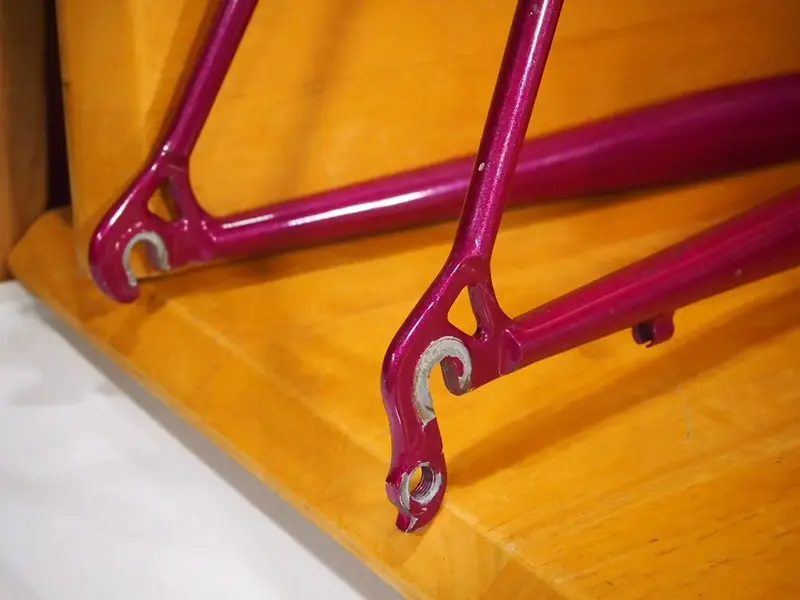

-Dropout spacing (hub width): 135mm

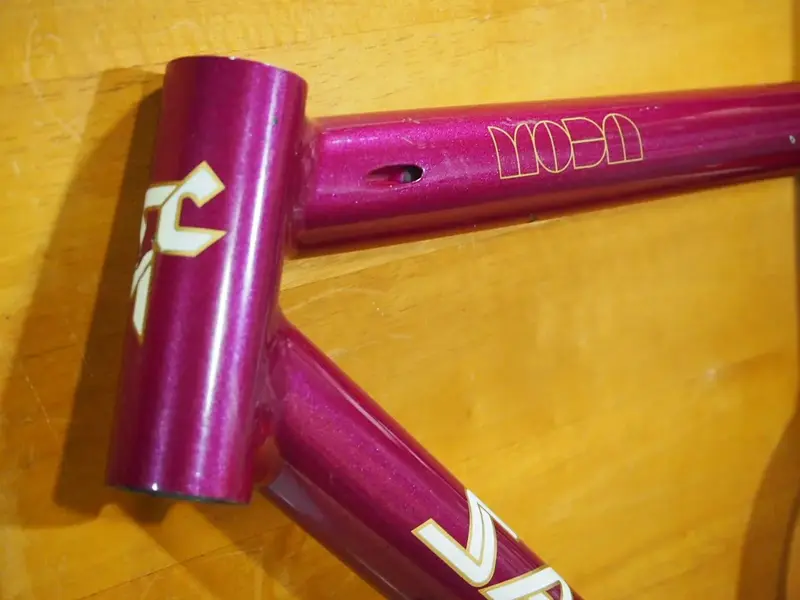

-Head-tube length: 110mm
-Headset size: 1-1/8" (28.6mm)

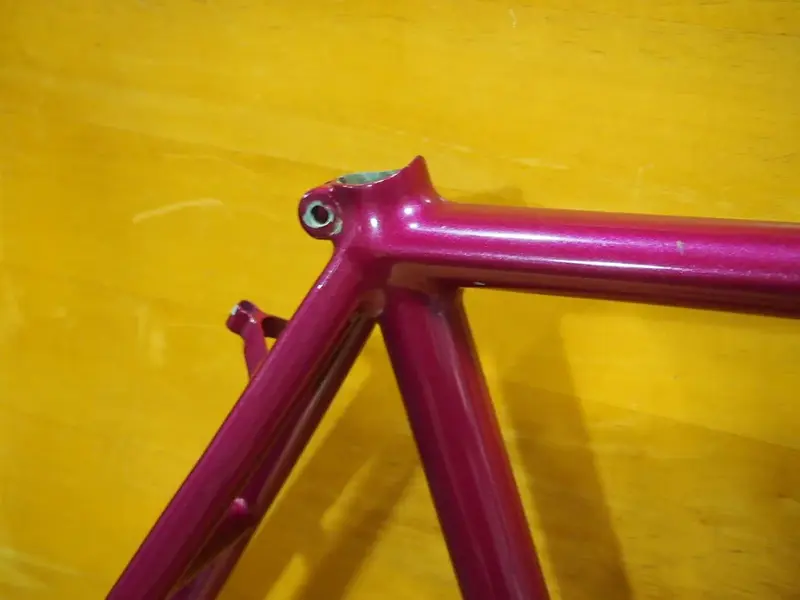

-Seatpost diameter: 27.2mm
-Front derailleur clamp diameter: 28.6mm

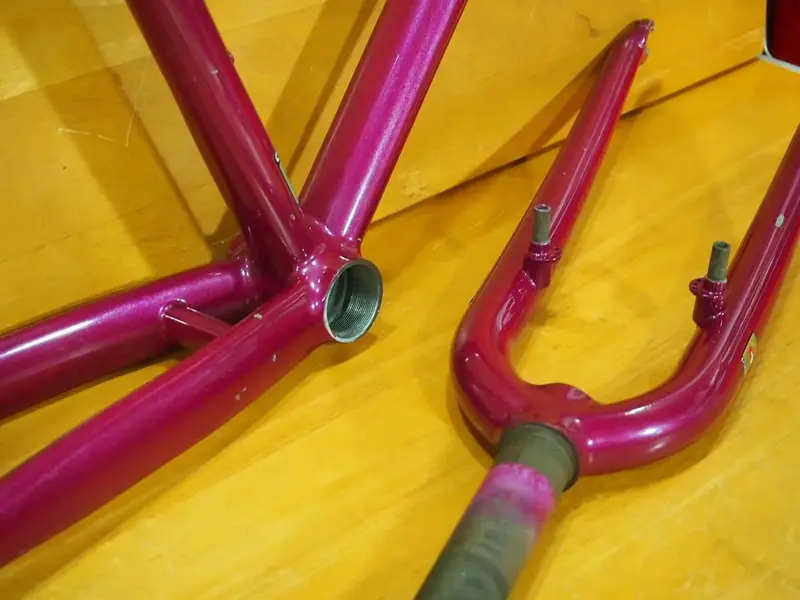

-Bottom-Bracket width/thread: 68mm/English
-Weight (actual): 2160 grams

Asking $799 USD.
Local pickups are welcome.
Thanks for looking!



[bikehoney]

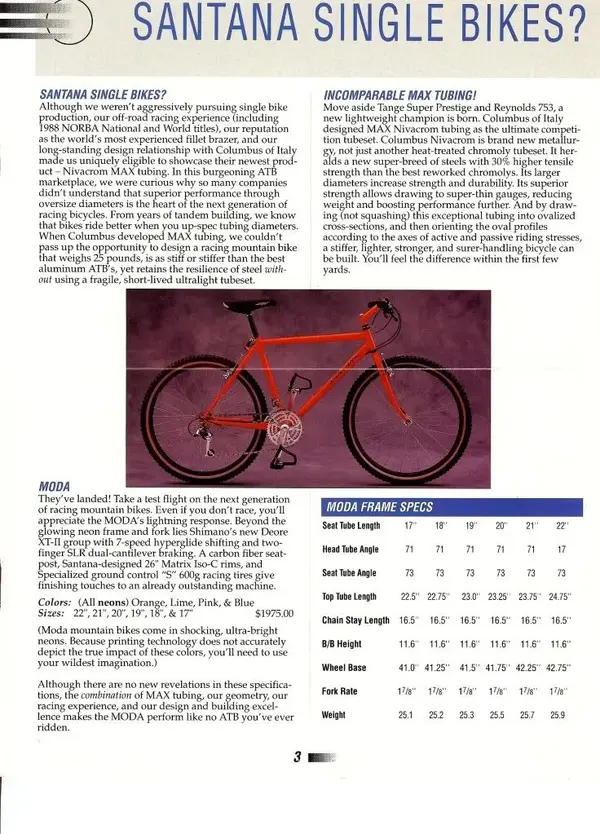

Re:

Moar!



[raidan73]

Beautiful



[Tomianson]

Lovely. Was there a stem with it too?



[bikehoney]

Price adjusted.



[tokiozakku]

Hi

Price adjusted.

Hi! What's the adjusted price?
